Using the correct material is an important part of manufacturing slitting saws and knife correctly. Because It is easily broken by the impact of machines. Traditionally, K series(ISO standard) are widely aceepted. But more new series like super micro grain sizes tungsten carbide material make it possible to have long products liefe and and good flexibility. Kumha adopt world famous tungster carbide with good grade. Also, with the help of Walter CNC made in Germany, we can regulate the thickness of knife or slitting saw up to 0.1mm and the tolerence of thickness is +/-  1/1,000mm.

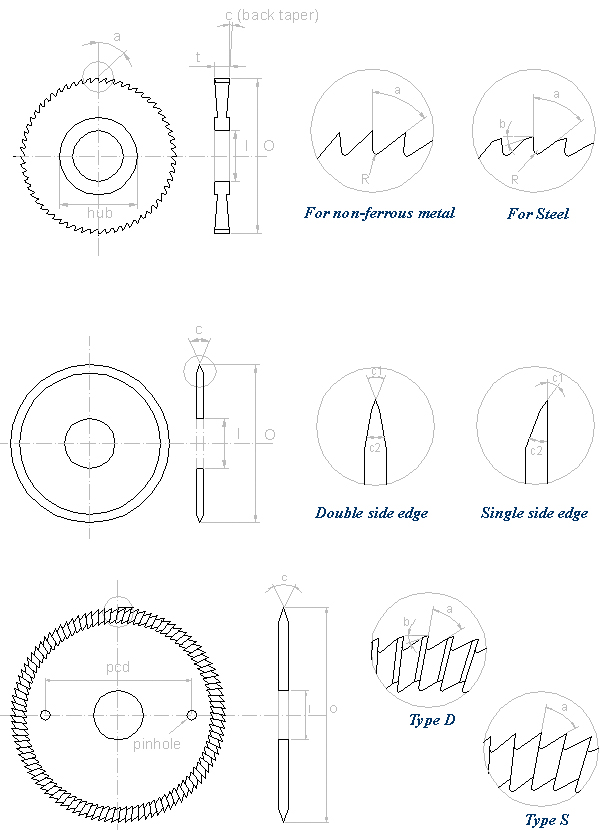

  *Solid carbide slitting saw

	Teeth	O.D.(mm)	Thickness(mm)	Inner hole(mm)	Inner hole(inch)
For steel	24	25	0.5~2.0	8
	30	30		10
	34	35		10
	40	40		13
	50	50		16
	60	60	0.6~4.0	22
	70	70		27
	80	80		32
For non-ferrous metal	24	25		8
	30	30	0.5~2.0	10
	34	35		10
	40	40		13	1/2
	50	50		16
	60	60	0.6~4.0	22
	70	70		27	1
	80	80		32

*Solid carbide V-cutter

*Other special sizes are manufactured by customer specification.

ISO 9002

1) Standard size: After confiming the stock, available right away.
2) Special size and shape: supplyng by the customer's drawings or samples.
3) Drawing sending: The files should be dwg or dxf of Auto CAD through the E-mail( dwg@kumha.co.kr)
                              Fax : +82-2-465-6332
4) Payment: Irrevocable L/C or T/T in advance.
5) Minimum quantity : 1 pc(Stock), 10pcs(Special)
6) Quotation : Ater receiving description or the drawings or samples, within 48hours.
